Competitive specs
Impossible priceMeet Myo‑20

A compact quasi-direct-drive actuator with an aluminum-polymer hybrid housing, easy closed-loop control, and integrated discharge circuitry at a fraction of competitor costs.

Pre-order yours View specs
20 N·mPeak torque
15′Arc-min backlash
8:1Reduction
CAN FDControls

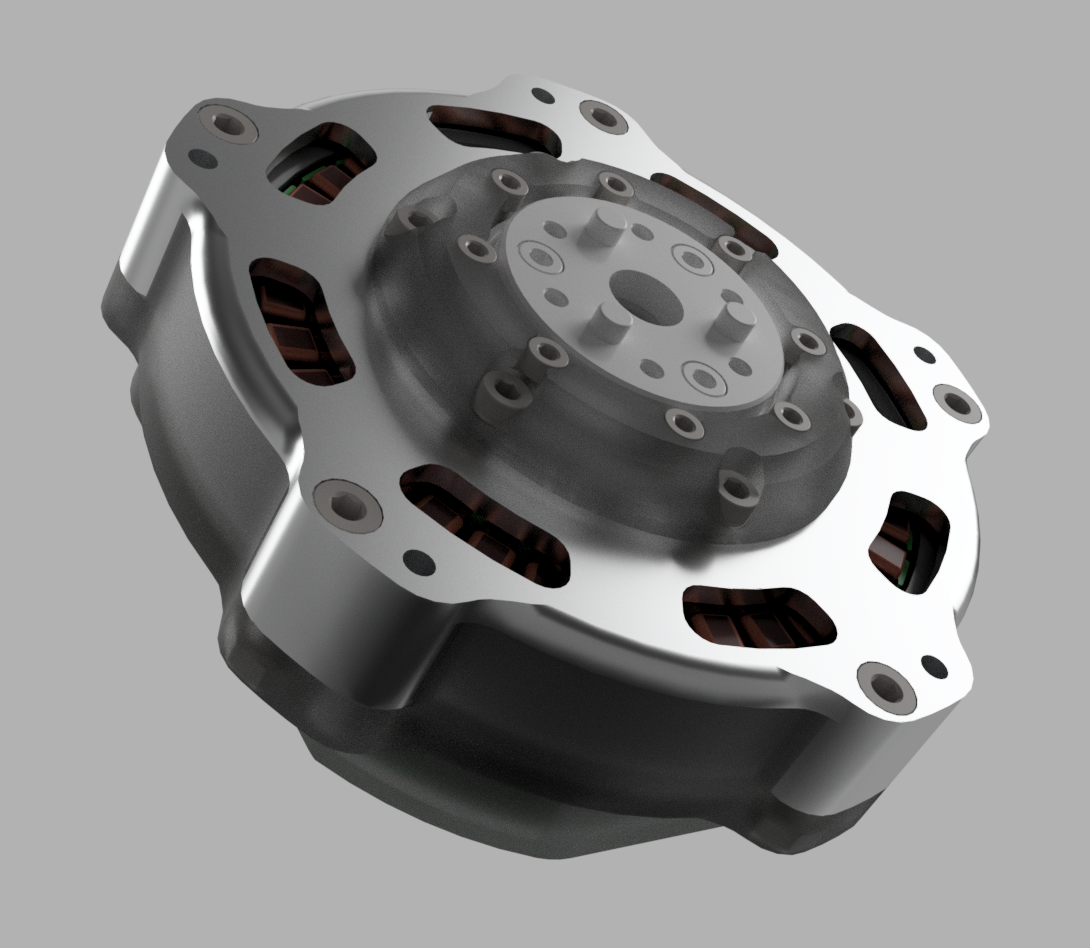

Myo-20 quasi-direct-drive actuator, three-quarter top view showing the geared output flange and copper stator windings
20 N·mPeak torque
15 arc-minBacklash
$299Price
1.28 inFlange-to-cover

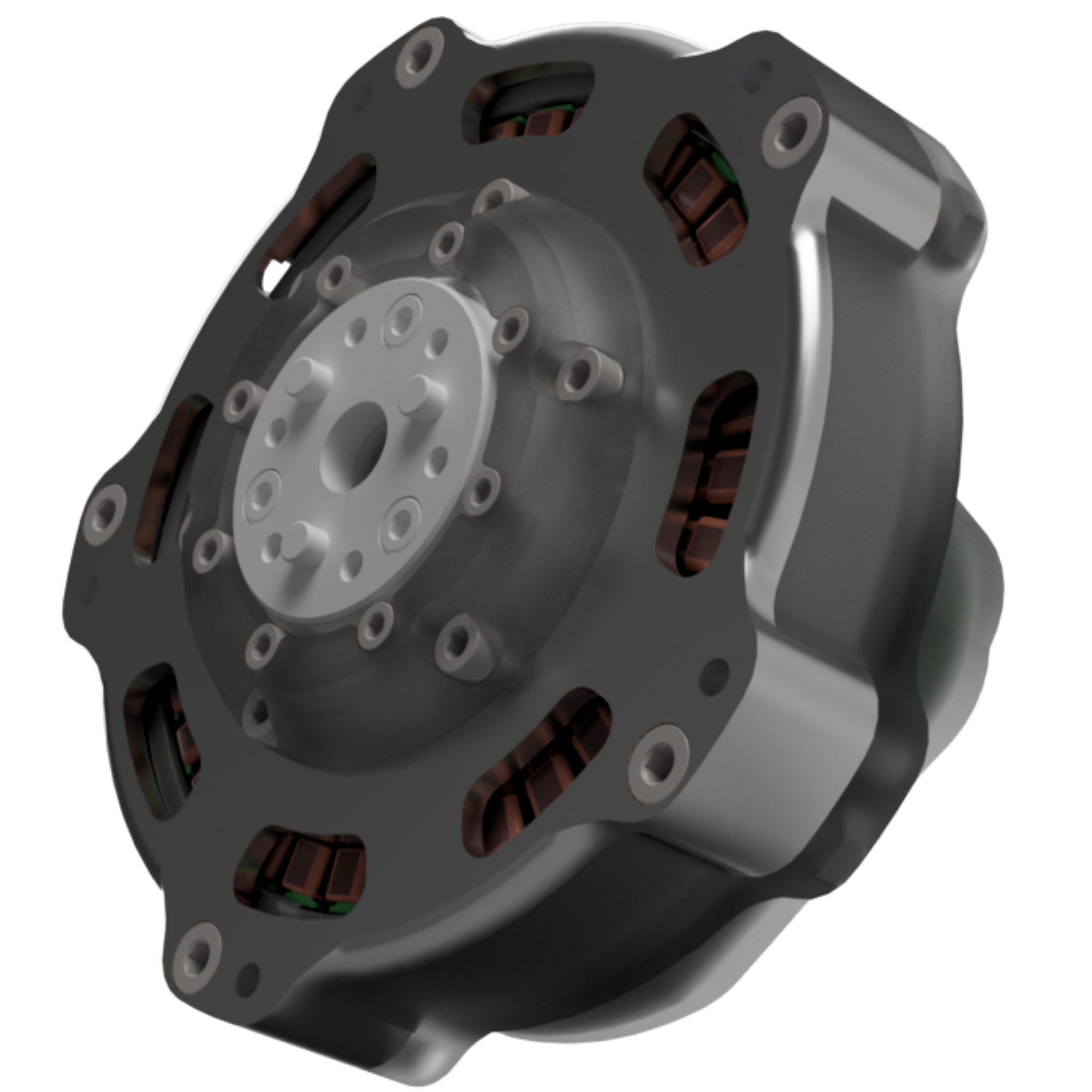

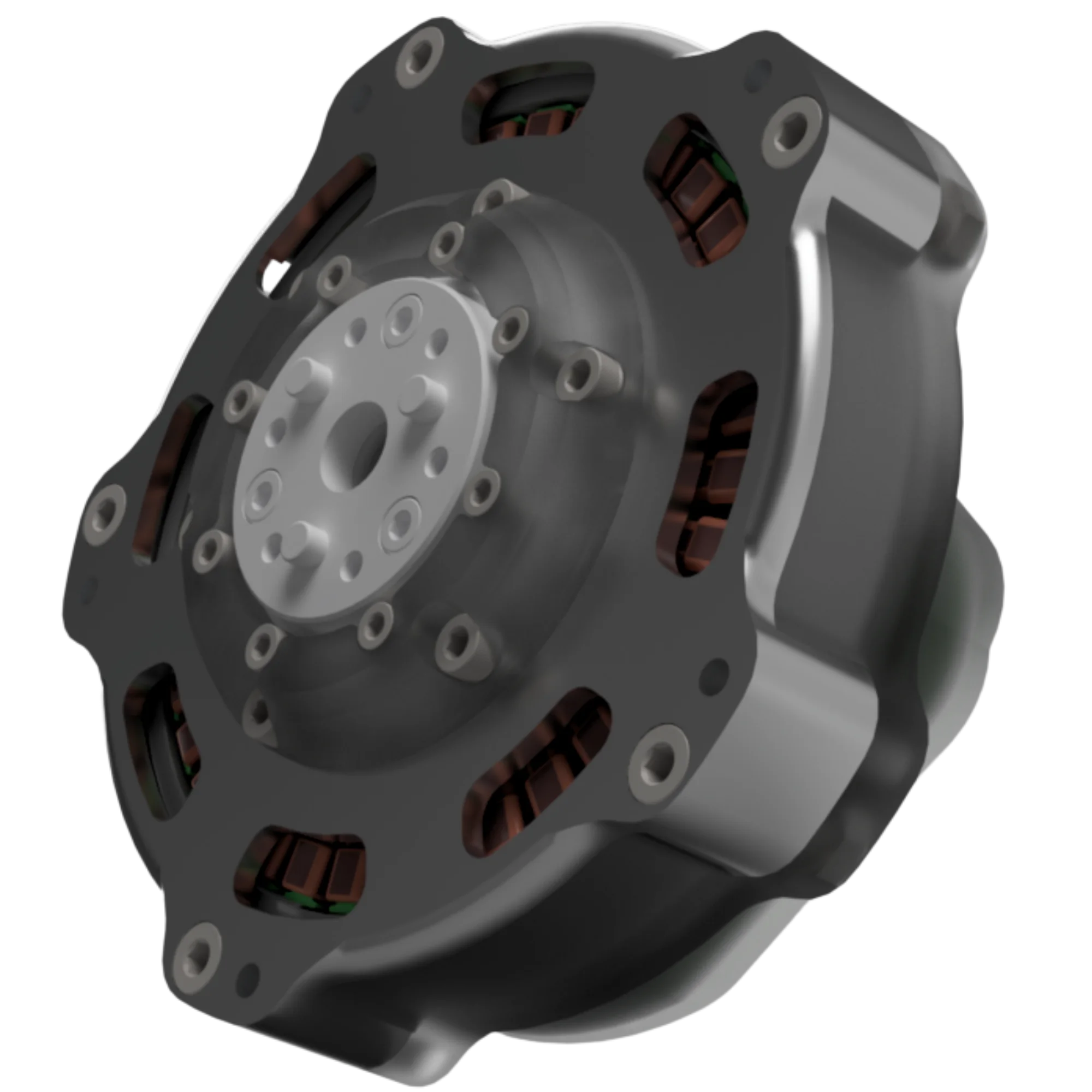

Myo-20 actuator seen from below, showing the output flange and copper windings through the housing cutouts
The anatomy

A single body,
engineered as one.

Motor, gearset, encoder and driver share one housing — so you focus on building, not on integrating four parts into a joint.

01 · Output

Geared output flange

20 N·m at the joint, 15 arc-min backlash.

02 · Drive

Stator & windings

Tightly wound for high torque density.

03 · Sense

Closed-loop encoder

Feedback for precise position & torque.

04 · Control

On-board electronics

Driver plus integrated ESD protection.

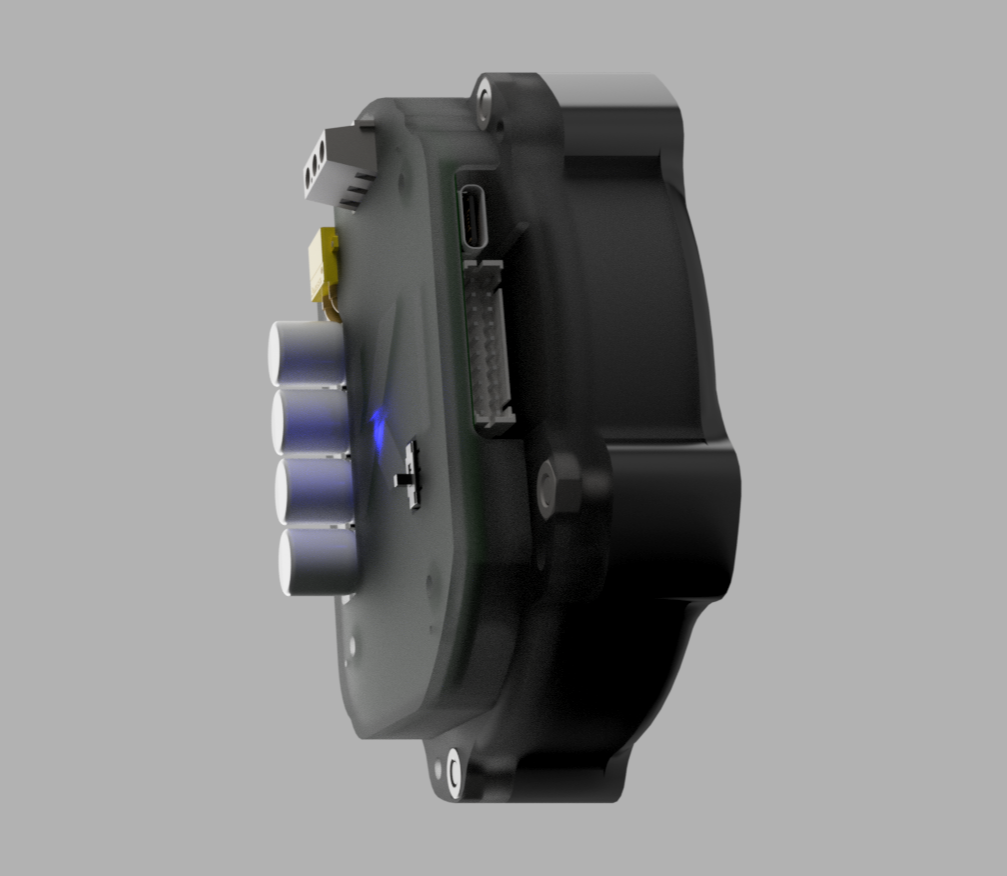

Myo-20 control board edge showing USB-C, CAN FD header and XT power connector
Easy to drive

Closed-loop control that drops into real systems.

Communicate with Myo-20 over CAN FD, UART, or USB-C, with position, velocity and torque control available from the start. Daisy-chain multiple joints on one bus.

CAN FDUSB-CUART PositionVelocityTorque
The numbers

Built to work.

Target specifications for the first Myo-20 production units rival actuators twice the price.

Price
$299 motor + control board, all-in
Controls
Plug & tune CAN FD / UART · open command set
Peak torque
20 N·m at peak phase current
Backlash
15 arc-min measured at the joint
Electrostatic Discharge Protection
On-board integrated to the control board
Reduction
8:1 high backdrivability
DC bus
24–48 V nominal operating range
Interface
CAN FD + UARTdaisy-chainable with CAN

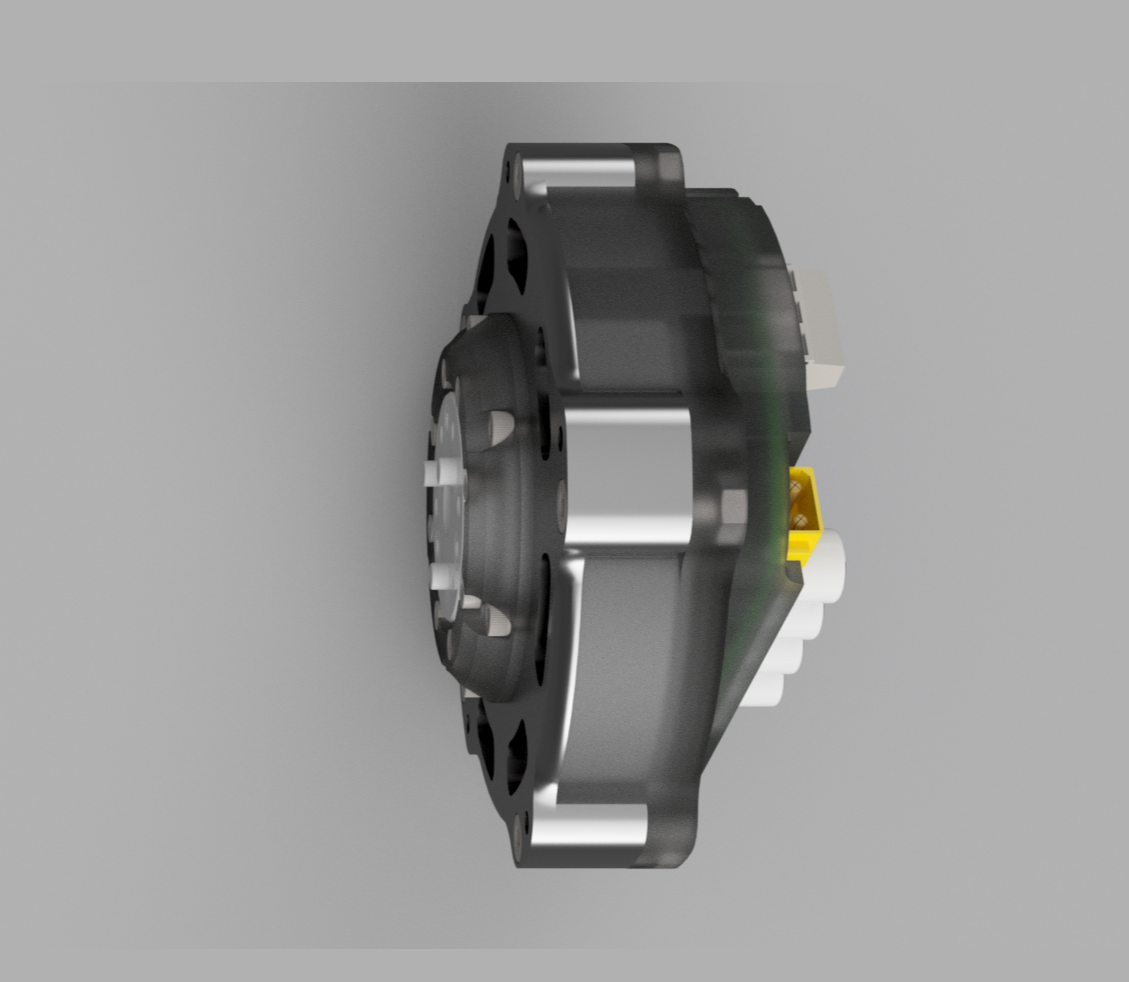

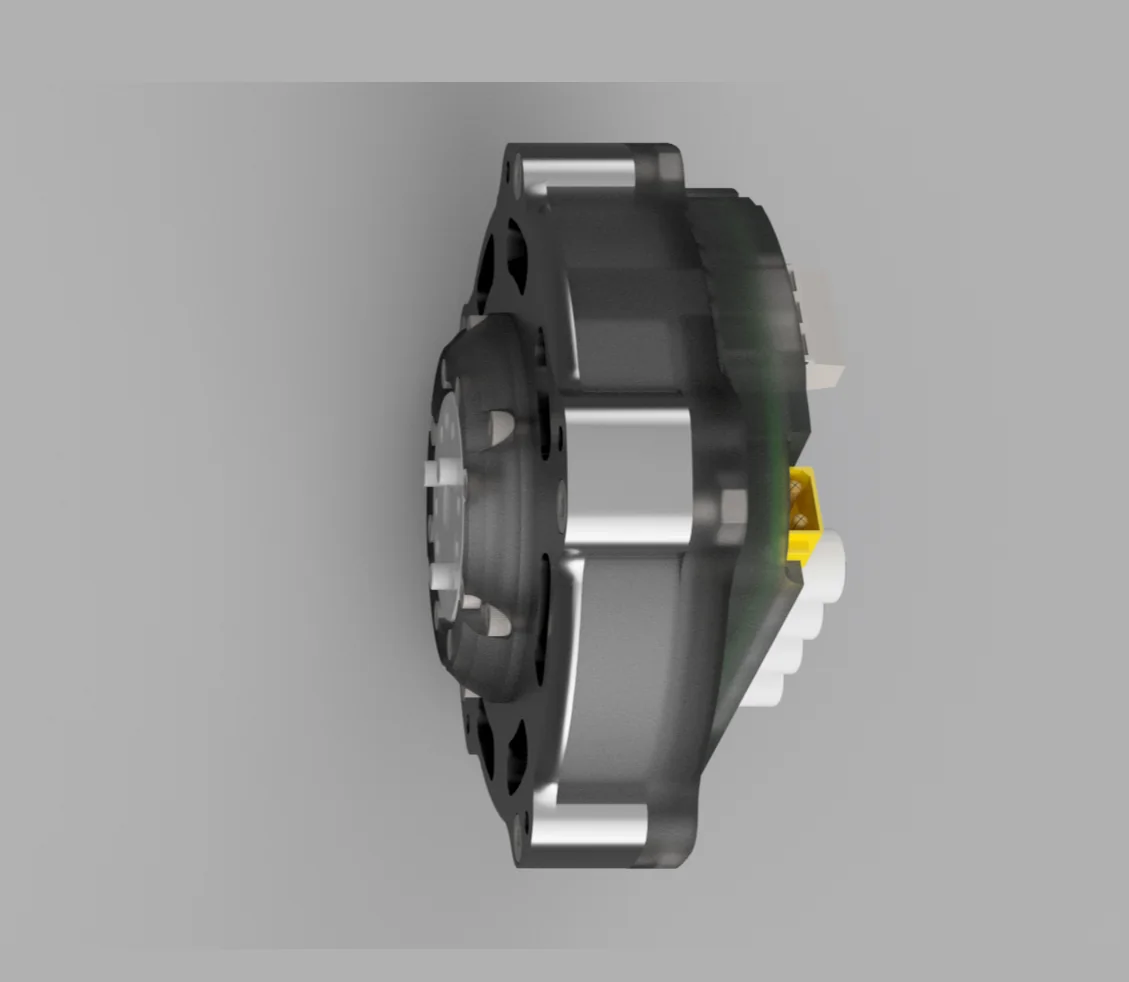

Side profile of the Myo-20 actuator
Pre-order your unit

Performance without the premium.

$299 for the Myo-20 actuator and control board together — same torque, backlash, controls and on-board discharge circuitry described above.

Pre-order yours right now to claim a unit from the first production run and lock in launch pricing.

Shipping calculated live at secure checkout
Pre-order · first production run
$299one-time · complete unit
Motor + control board, all-in · ships with the first run
  • 20 N·m torque · 15 arc-min backlash
  • Easy closed-loop control over CAN FD / UART
  • On-board discharge circuitry, no add-on
  • Priority in the first batch · launch pricing
  • 30-day money-back guarantee
Secure one-time checkout by Stripe · 30-day money-back guarantee.

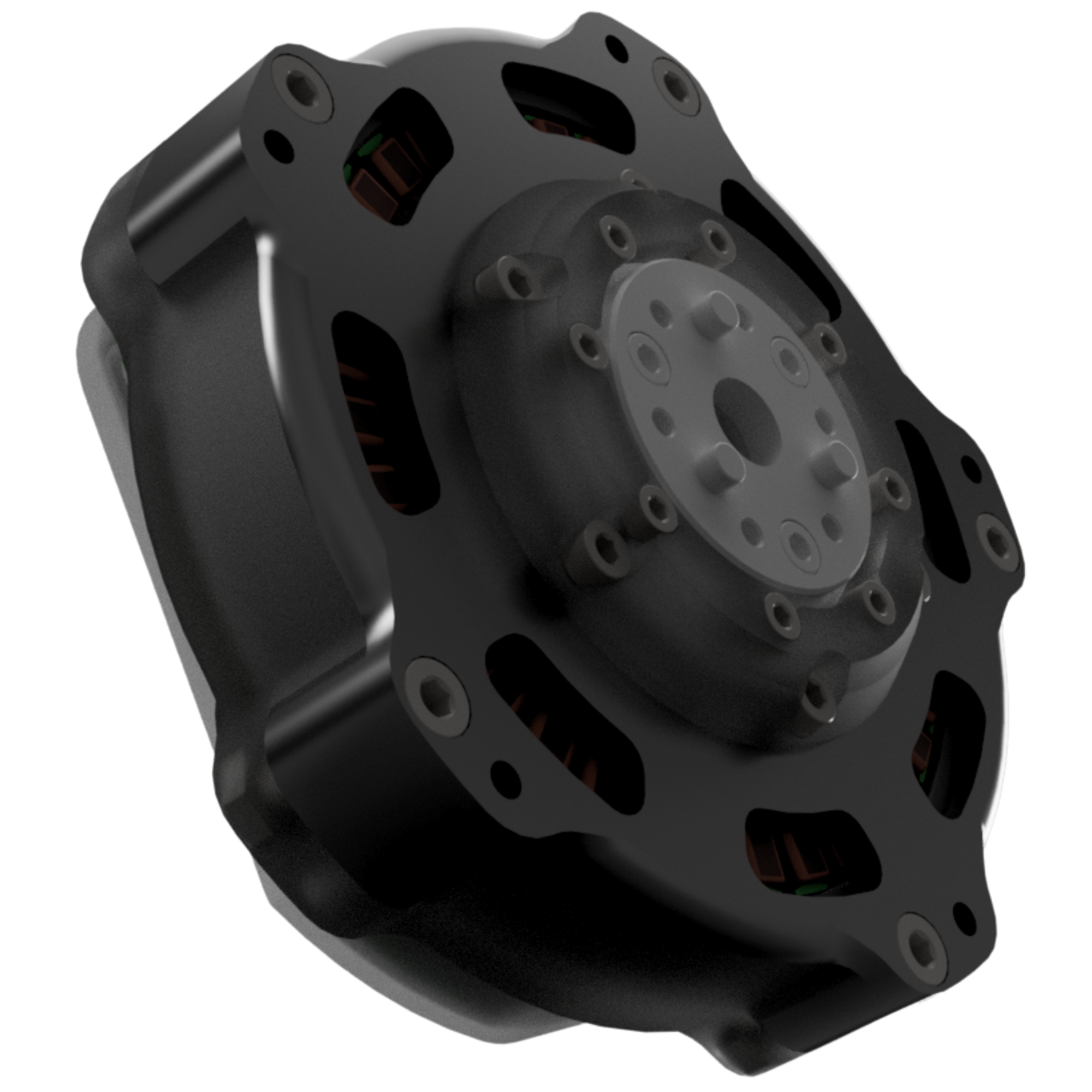

Myo-20 actuator, three-quarter view from the lower left
The finish line

The actuator we
wished existed.

Now you can help us build the first run. Pre-order Myo-20 today.

$299 · one-time · secure Stripe checkout
